OUR PRODUCTS
Beautifully designed machined aluminium wall mounts which have been designed to hold LCD, LED and Plasma TV's.
All brackets come with a standard VESA fitting or can have an adaptor plate added on request to suit any other non-standard fixing.
Aluminium Adjustable Wall Mounts
Wall Mount - M1
Compatible with:- Connect 22in & 26in LCD
- Holds up to max weight 12.5kg
- Tilt and swivel motion
- Comes with standard 75 x 100mm VESA plate or on request 200x100 & 200 X 200 VESA plate
- Adaptor plates available to suit all manufacturers of LCD TVs
- Horizontal “Adjust and lock” mechanism
- Holds 10” to 32” screens (dependant on weight)
- Wall to back of screen 120mm
- Wall plate dimensions: H 125mm x W 100mm
- Fixing options
- VESA Plates: standard 100 x 100
- On request 200x100, 200x200, 75x75
Wall Mount - M2
Compatible with:- Connect 22in & 26in LCD
- Holds up to max weight 12.5kg, reach 280mm
- Twin left right pivot
- Provides full movement -180 degree left and right and 45 degree tilt
- Comes with standard 75 x 100mm VESA plate
- On request 200x100 & 200 X 200 VESA plate
- Horizontal "Adjust and Lock" mechanism
- Holds 10in to 32in screens (dependant on weight)
- Adaptor plates available to suit all manufacturers of LCD TVs
- Wall to back of screen 102mm when folded back
- Wall plate dimensions: H 125mm x W 100mm
- Fixing options
- VESA Plates: standard 100 x 100
- On request 200x100, 200x200, 75x75

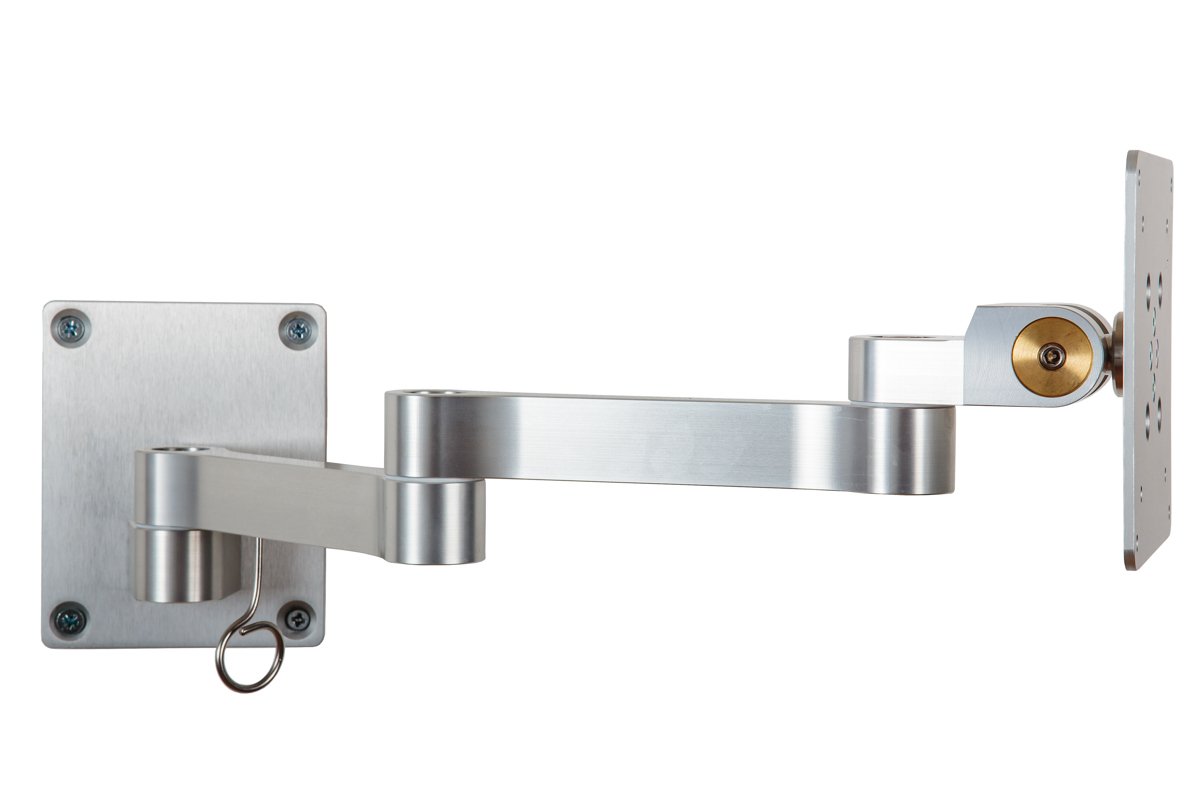

Wall Mount - M3
- Holds up to max weight 12.5kg, reach 410mm
- Triple left right pivot
- Provides full movement -180 degree left and right pivot
- Comes with standard 75/100mm VESA plate
- On request 200x100 & 200 X 200 VESA plate
- Horizontal "Adjust and Lock" mechanism
- Holds 10in to 32in screens (dependant on weight)
- Adaptor plates available to suit all manufacturers of LCD TVs
- Wall to back of screen 102mm when folded back
- Wall plate dimensions: H 125mm x W 100mm
- Fixing options
- VESA Plates: standard 100 x 100
- On request 200x100, 200x200, 75x75

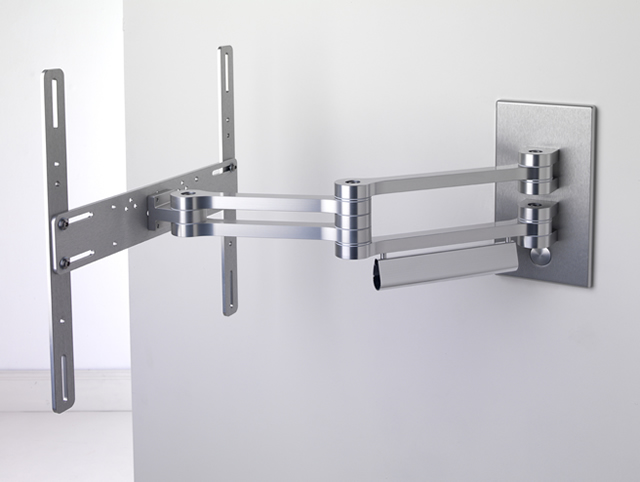

Wall Mount - M6

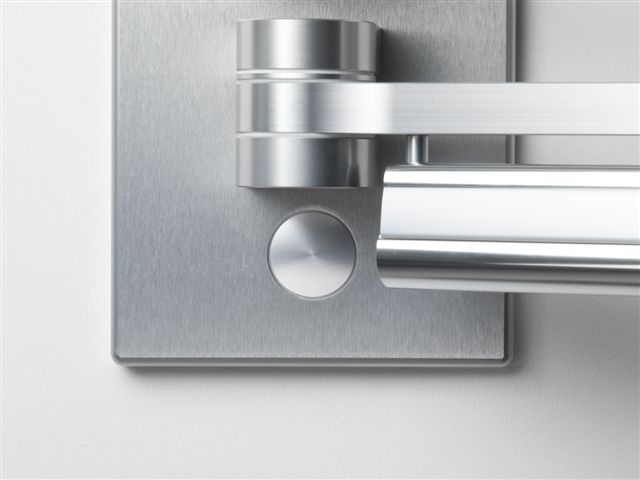

- New covered wall plate (no wall mounting holes visible)
- Holds up to max weight 25kg, reach 400mm
- Twin left right pivot
- Provides full movement - 180 degree left and right
- Horizontal "Adjust and Lock" mechanism
- Adaptor plates available to suit all manufacturers of LCD TVs
- Holds 22in to 50in screens (dependant on weight)
- Wall to back of screen 95 mm when folded back
- Wall plate dimensions: H 270 mm x W 150mm
- REACH 630 mm
- Speaker bars Available
- Fixing options:
- 200 x 200 VESA fitting plate
- 200 x100 VESA fixing plate
- 100 x100 VESA fixing plate
- NEW! H Frame-400 fits 400/300 VESA

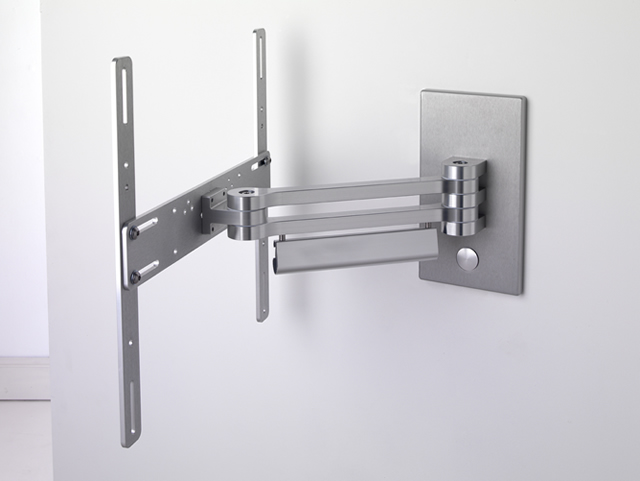

Wall Mount - M4
- New covered wall plate (no wall mounting holes visible)
- Holds up to max weight 35kg, reach 390mm
- Twin left right pivot
- Provides full movement - 180 degree left and right
- Horizontal "Adjust and Lock" mechanism
- Adaptor plates available to suit all manufacturers of LCD TVs
- Holds 26in to 50in LCD screens (dependant on weight)
- Wall to back of screen 80 mm when folded back
- Wall plate dimensions: H 270 mm x W 150mm
- New cable management system comes with a cap, which can be removed to feed cable directly through the wall
- Fixing options:
- 200 x 200 VESA fitting plate
- 200 x100 VESA fixing plate
- 100 x100 VESA fixing plate
- H Frame-400 fits 400/300 VESA

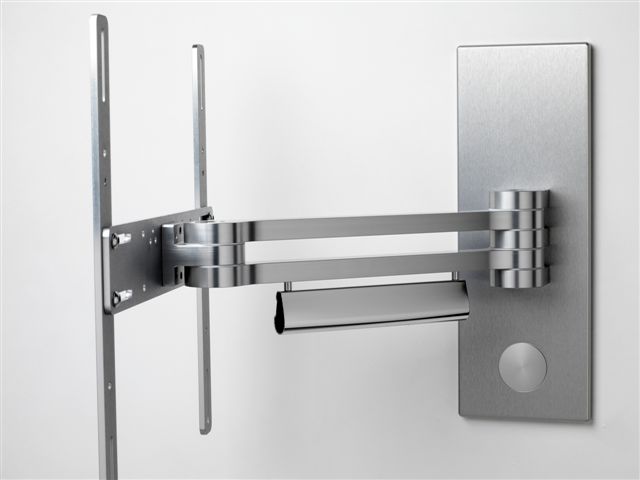

Wall Mount - M11
- Screen up to 55Kgs in reach 465 mm.
- When folded back wall to back of screen 85 mm
- The M11 bracket has 180 degrees left-right pivot
- Comes standard with cable management system as shown
- Wall plate dimensions: H 422mm x W 150mm
- For Speaker bars see "TRUNKING/SHELVES & SPEAKER BARS"
- 'H' Frame-400 fits 400/300 VESA available
- New Pins For Loewe

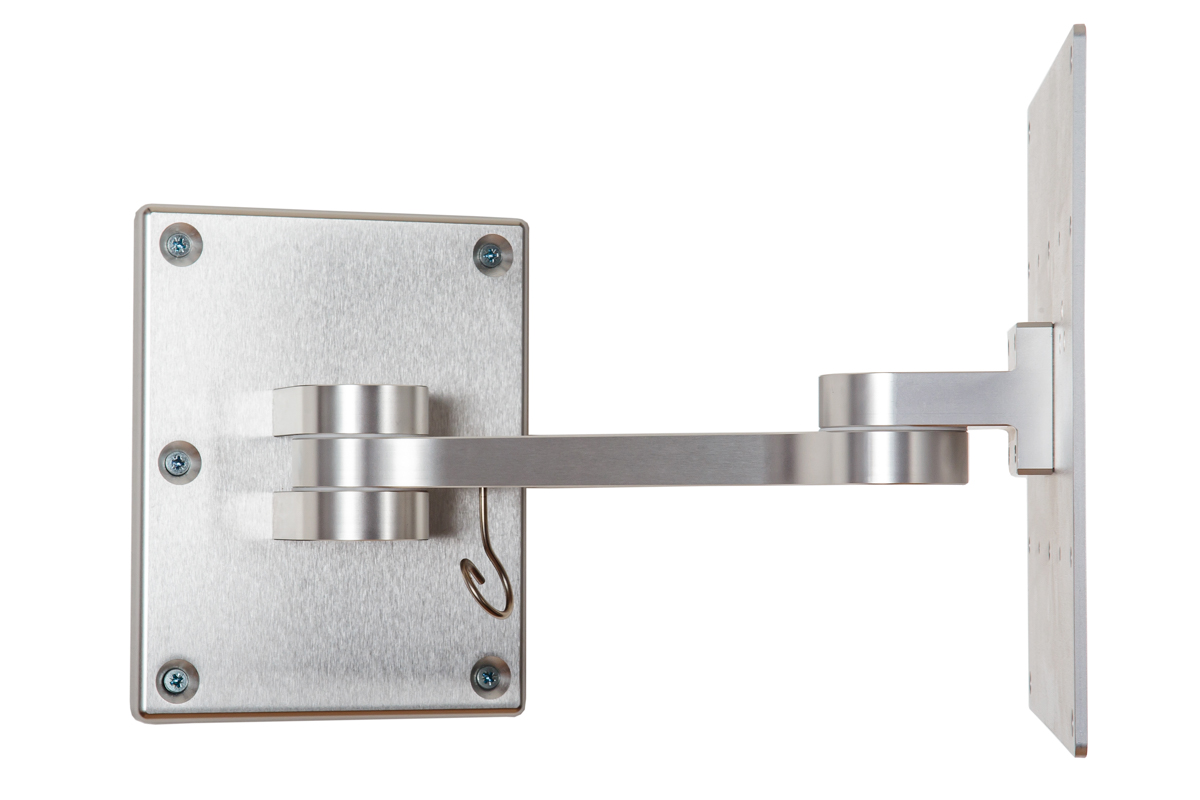

Wall Mount - R2
- Left/right swivel
- Max weight 15.00 kg
- Reach 298 mm
- Wall to back of screen 85 mm
- Price includes choice of:
- 100 X 100 VESA
- 200 X 200 VESA
- NEW! H Frame-400 fits 400x400 VESA available on request

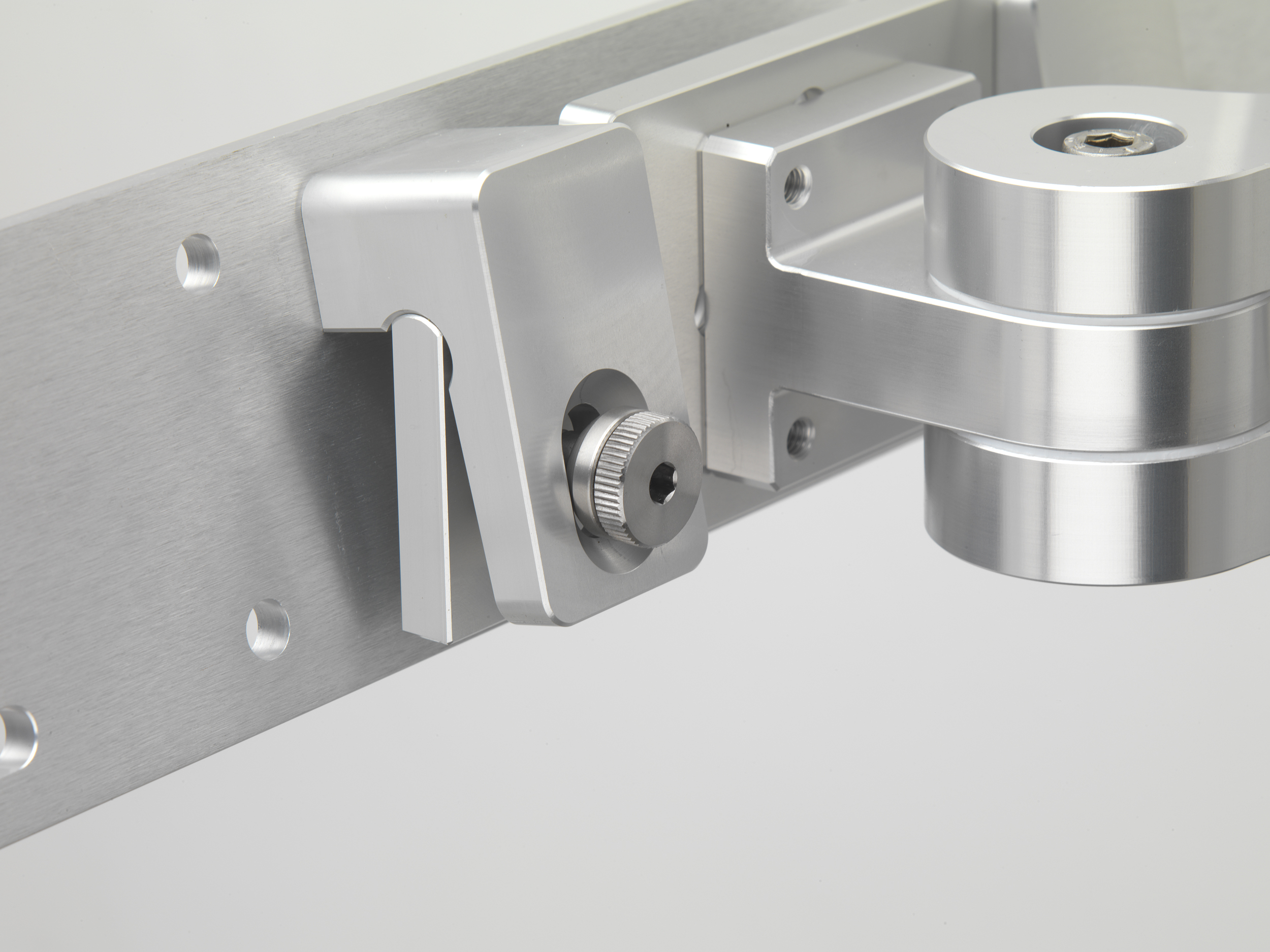

- Optional tilt system for all brackets
- Compatible with H-frames 400 or vesa 200

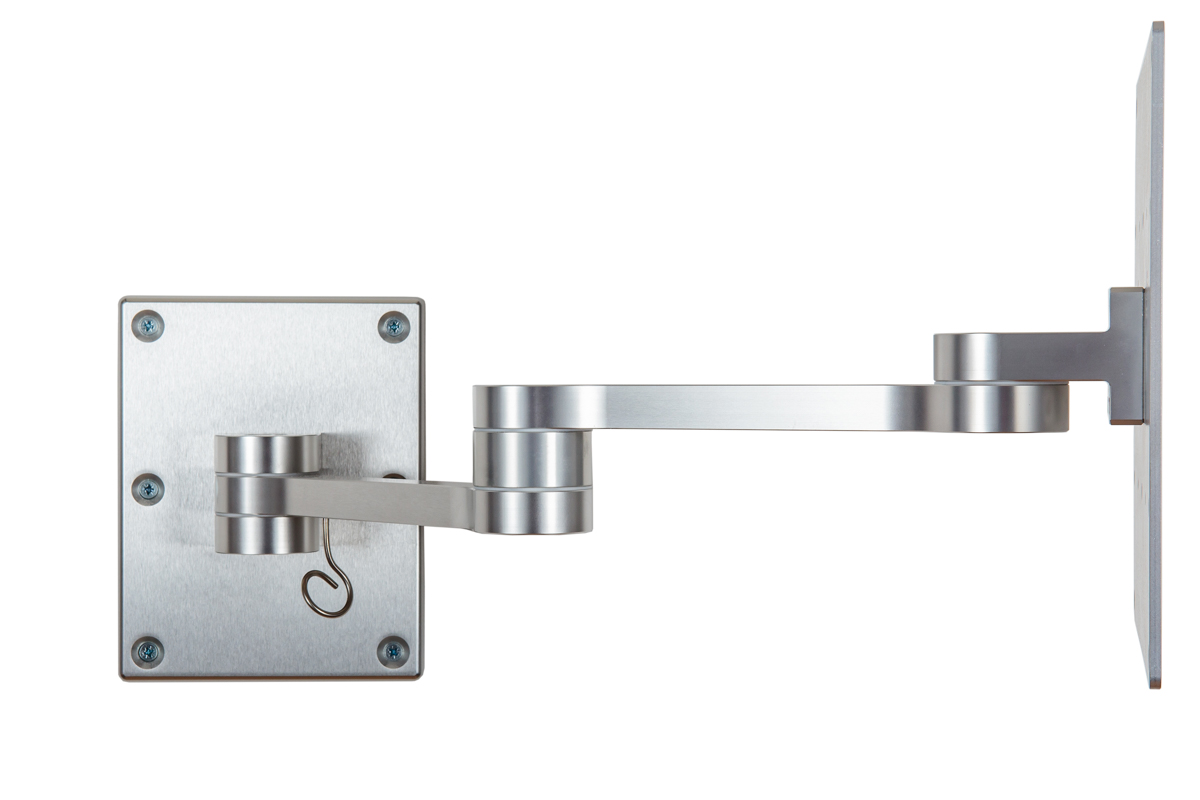

Wall Mount - R3
- Left/right swivel
- Max weight 15.00 kg
- Reach 502 mm
- Wall to back of screen 85 mm
- Price includes choice of:
- 100 X 100 VESA
- 200 X 200 VESA
- NEW! H Frame-400 fits 400x400 VESA available on request
- Optional tilt system for all brackets
- Compatible with H-frames 400 or vesa 200
