OUR PRODUCTS
Beautifully designed machined aluminium post mounts which have been designed to hold an LCD up to 12.5kg.
All brackets come with a standard 75mm or 100mm VESA fitting or can have an adaptor plate added on request to suit any other non-standard fixing.
Desk Mounts

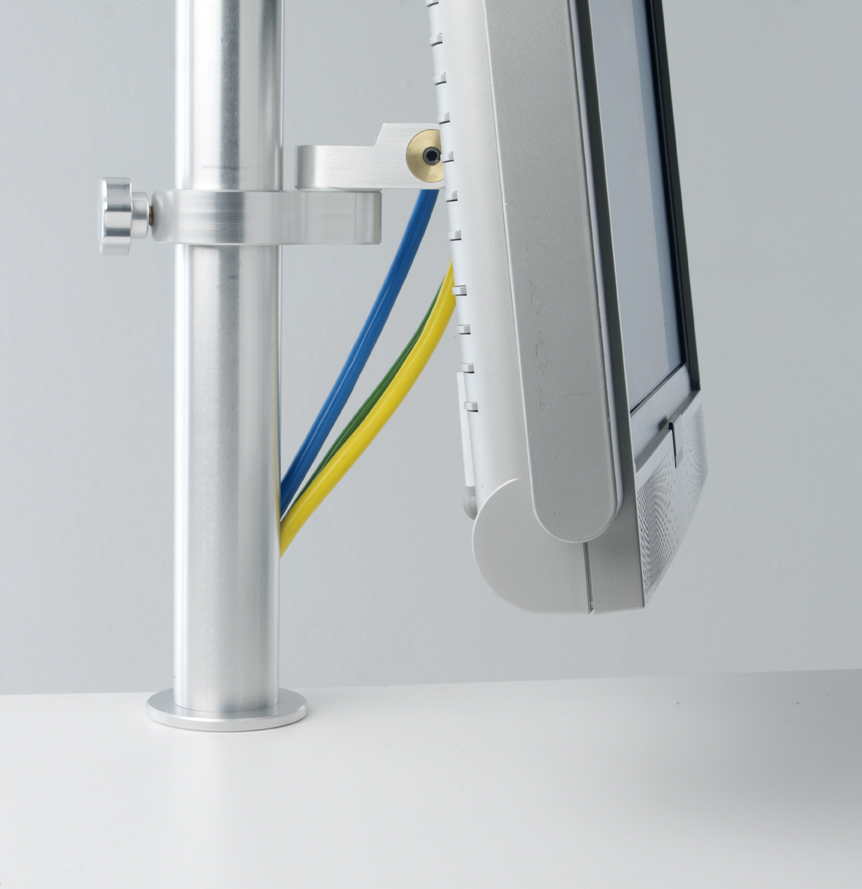

Desk Mount M20 (Pole only)
- The M20 Pole provides a cable management solution
- Pole diameter 49mm.
- Height 400mm standard.
- Cable width 25mm, depth 78mm.
- Secured through desk by circular lock ring.
- Maximum mounting fixing 70mm in thickness.
- Choose from three pole mounts the M1, M2 and M3

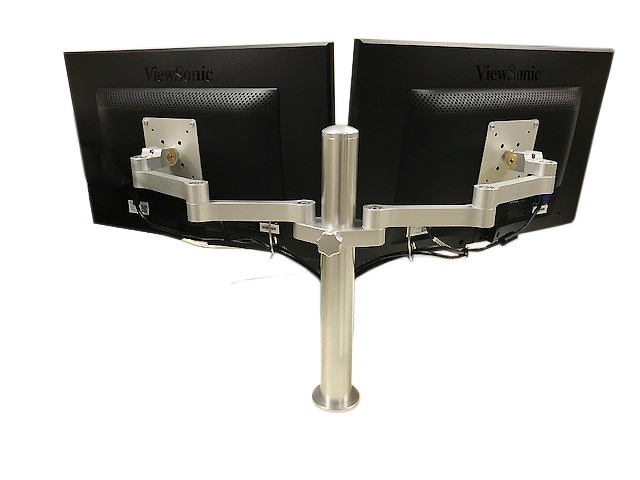

Desk Mount M20 / Double Desk Mount
- The M20 Pole provides a cable management solution
- Pole diameter 49mm.
- Height 400mm standard.
- Cable width 25mm, depth 78mm.
- Secured through desk by circular lock ring.
- Maximum mounting fixing 70mm in thickness.
- Choose from three pole mounts the M1, M2 and M3

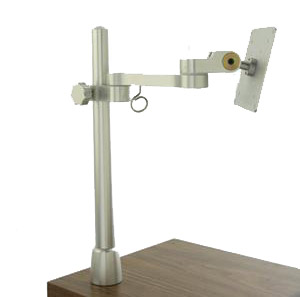

Desk Mount M32 (Pole only)
- The M32 provides a solid through desk pole
- Pole diameter 31.25mm
- Height 300mm or 400mm
- Maximum fixing 70mm in thickness
- Choose from three pole mounts -the M1, M2 and M3

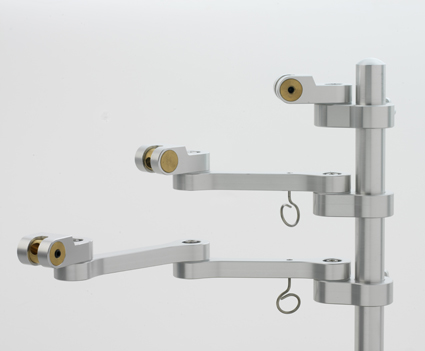

Pole Mounts (Pole not inc)
- M1 POLE MOUNT
- left and right pivot
- up/down tilt
- M2 POLE MOUNT
- twin left and right pivot
- 180 degree left and right movement
- 45 degree up and down tilt
- M3 POLE MOUNT
- triple left and right pivot
- 180 degree left and right movement
- 45 degree up and down tilt
- VESA fixings available for 75x75, 100x100, 200x200, 200x200
- Quick Release head available for 100x100 vesa

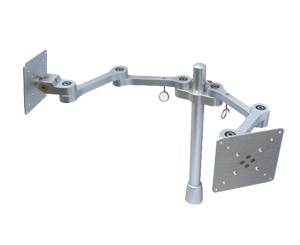

Pole Mount M3D/32 (Pole not incl.)
- Double screen mounting bracket
- Incorporates 2 X M3 Pole mounts
- Triple left and right pivot
- 180 degree left and right movement
- 45 degree up and down tilt
- Standard 100 X 100 VESA Fixing
- For use with M32 Pole

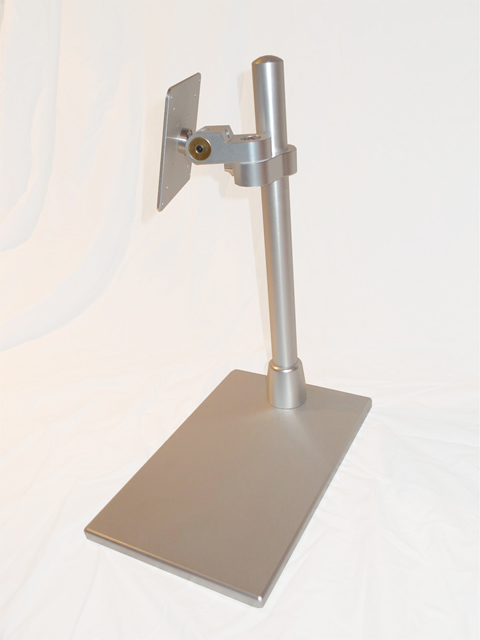

Custom Made Desk Monitor Stand
Can be used with M1, M2 and M3 Pole Mounts- M1 POLE MOUNT
- left and right pivot
- up/down tilt
- M2 POLE MOUNT
- twin left and right pivot
- 180 degree left and right movement
- 45 degree up and down tilt
- M3 POLE MOUNT
- triple left and right pivot
- 180 degree left and right movement
- 45 degree up and down tilt
- VESA fixings available for 75x75, 100x100, 200x200, 200x200
- Quick Release head available for 100x100 vesa

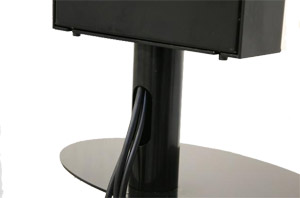

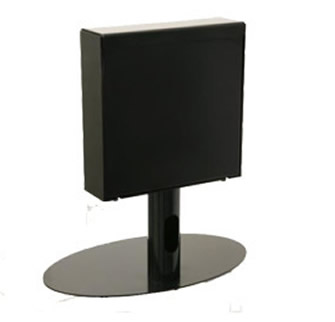

Desk Mount - Table Stand TS01
- Rotating head unit
- Compatible with VESA 100 x 100, 200 x 200, 200 x 100
- Overall height 390mm
- Pole diameter 50mm
- Standard product show, bespoke height & fixings on request
- All items have anti-theft bolts & screws
