OUR PRODUCTS
e-visionuk.com has designed a low cost steel range of flush brackets which allows your LCD to be mounted to a wall where you do not require any movement.
Flush Wall Brackets

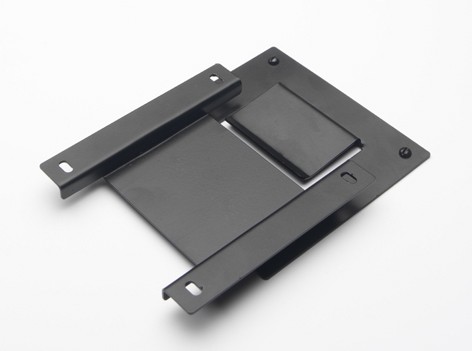

Flush Wall Bracket - FB1
- Our FB1 standard flush bracket is suitable for all screens that have a 100mm VESA fitting
- Holds max weight 20kg.
- Wall to back of screen 12mm.
Tilting Flush Wall Bracket - FB75
- Our FB75 standard flush bracket is suitable for all screens that have a 100x100mm and 75x75mm VESA fitting
- Holds max weight 20kg.
- 30mm wall to back of screen
- Dimensions 142mm w x 140 h
- 5-10 degree tilt
- Houses receiver box
- Supplied with security screws on request
Flush Wall Bracket - FB200
- VESA 100 x 100, 200 x 100, 200 x 200
- 50mm wall to back of screen
- Dimensions 227 x 200 x 50
- 5-15 degree tilt
- Houses receiver box
- Supplied with security screws on request
Key hole Bracket - KH1
- Slim wall mount for LED & LCD screens
- Key hole anti theft locking system for extra security

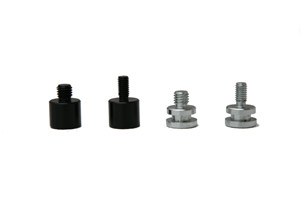

- Supplied with 2 sets of locking pins (M6 & M8)
- Includes nylon spacers to level & secure screen
- Suitable for the following VESA fixings:
- 200x100
- 200x200
- 300x300
- 300x200
- 400x400
- 400x200
- 400x300
- KH 1 12mm KH2 7mm wall to back of screen
- KH2 7mm wall to back of screen
- Fixing Pins sold separately in sets of 2
- Slim wall mount for LED & LCD screens
- 2 x M4,2 x M5,2 x M6,2 X Loewe connect pins sold separately
Keyhole Bracket - KH100
- Slim wall mount
- Key hole anti theft locking system for extra security
- Supplied with M4 & M6 fixings
- Suitable for 100x100 VESA
Key hole Bracket - KH200x100
- Slim wall mount
- Key hole anti theft locking system for extra security
- Supplied with M4 & M6 fixings
- Suitable for 200x100 VESA
- Alternative VESA sizes on request
Tilting Flush Wall Bracket - FB300
- Bracket dimensions 240mm W x 120mm H
- 10 degree tilt
- 30mm wall to screen
- 200mm x 100mm 6 hole VESA and 100 VESA fixing
- Holds max weight 30kg
- Security screws can be added
- Quantity prices available
Tilting Flush Wall Bracket - FB300/D
- Bracket dimensions 240mm W x 120mm H
- 10 degree tilt
- 30mm wall to screen
- 200mm x 100mm 6 hole VESA and 100 VESA fixing
- Holds max weight 30kg
- Security screws can be added
- Quantity prices available
Flush Wall Mount - FB500
- Max Weight 30kg
- Horizontal screw range: 100 to 500mm
- Vertical screw range: 150 to 400mm
- Distance between back of TV and wall: 25 mm
- Easy to install hook on system
- Suitable for 15in to 32in screens
- Supplied with spacers for extra cable clearance
- Padlock optional
- Quantity prices available
Flush Wall Mount - FB1000
- Max Weight 80kg
- Horizontal screw range: 100 to 800mm
- Vertical screw range: 150 to 470mm
- Distance between back of TV and wall: 30 mm
- Easy to install hook on system
- Suitable for 37in to 55in screens
- Supplied with spacers for extra cable clearance
- Padlock optional
- Quantity prices available
Flush Wall Mount - FB2000
- Max Weight 80kg
- Horizontal screw range: 100 to 1100mm
- Vertical screw range: 150 to 470mm
- Distance between back of TV and wall: 40 mm
- Easy to install hook on system
- Manufactured in 3mm steel
- Suitable for 55in to 65in screens
- Supplied with spacers for extra cable clearance
- Padlock optional
- Quantity prices available
