Wall Mount - M3

• Holds up to max weight 12.5kg, reach 410mm
• Triple left right pivot
• Provides full movement -180 degree left and right pivot
• Comes with standard 75/100mm VESA plate
• On request 200x100 & 200 X 200 VESA plate
• Horizontal "Adjust and Lock" mechanism
• Holds 10in to 32in screens (dependant on weight)
• Adaptor plates available to suit all manufacturers of LCD TVs
• Wall to back of screen 102mm when folded back
• Wall plate dimensions: H 125mm x W 100mm
• Fixing options

• VESA Plates: standard 100 x 100

• On request 200x100, 200x200, 75x75


Downloads

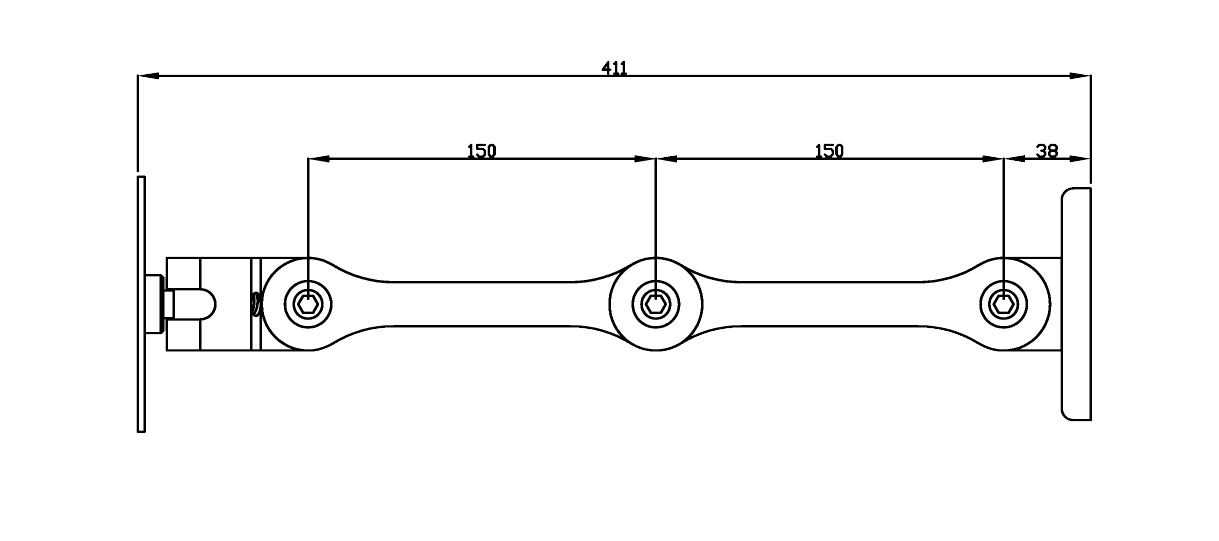

M3 Technical Drawing
