Wall Mount - M6

• New covered wall plate (no wall mounting holes visible)s
• Holds up to max weight 25kg, 680mm reach
• Twin left right pivot
• Provides full movement -180 degree left and right and 10 degree tilt
• Horizontal "Adjust and Lock" mechanism
• Holds 26in to 40in LCD screens (dependant on weight)
• Wall to back of screen 150mm when folded back
• Price includes choice of:
  • 200 x 200 VESA fitting plate
  • 200 x100 VESA fixing plate
  • 100 x100 VESA fixing plate
  • 300 x 300 VESA fixing plate (+£10)
  • Standard H Frame (+£20)
• Bang & Olufsen adaptors available on request
• Adaptor plates available to suit all manufacturers of LCD TVs
• Wall to back of screen 157mm when folded back
• NEW! H Frame-400 fits 400x400 VESA available on request
• Wall plate dimensions: H 271mm x W 150mm
• New cable management system comes with a cap, which can be removed to feed cable directly through the wall

Downloads

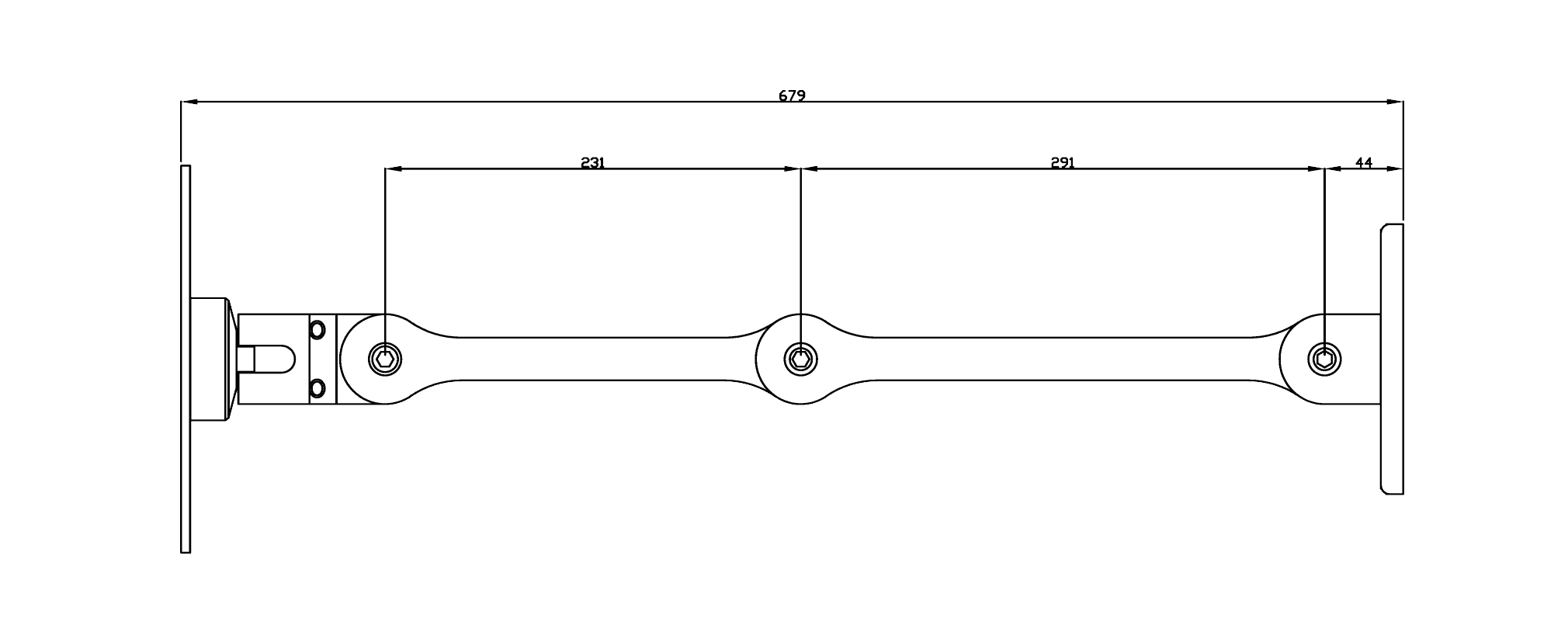

M6 Technical Drawing - Extended

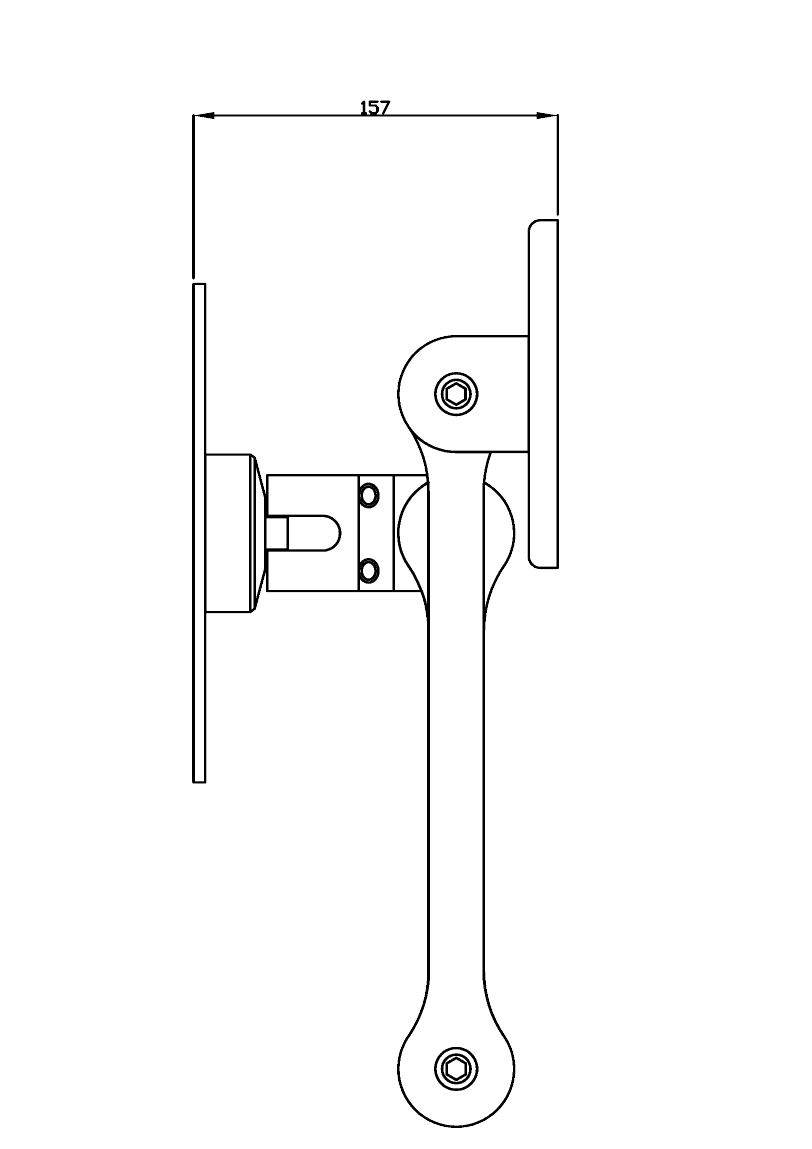

M6 Technical Drawing - Retracted
