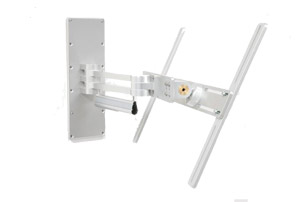

Wall Mount - M10 (tilt)

• The M10 plasma bracketis fitted with a universal 'H' frame allowing you fit it to any size plasma screen up to 55Kgs in reach 550mm.
• When folded back wall to back of screen 160mm
• the M10 bracket has 180 degrees left-right pivot and a 45 degree tilt
• Comes standard with cable management system as shown
• 200 x 200 VESA adaptor plate for large LCDs available on request
• 300 VESA adaptor plate available on request
• NEW! H Frame-400 fits 400x400 VESA available on request
• wall plate dimensions: H 422mm x W 150mm

Downloads

M10 Technical Drawing
